Technical Sheet
Model
|
CIPM L1
|
Frequency
|
60 Hz
|
Standard Power
|
5 W
|
Working Temperature
|
10-38 ºC
|
Working humidity
|
109% - 609%
|
Printhead
|
Thermal Inkjet 2.5 |
Operating system
|
Linux |
CPU
|
1.4 GHZ Quad Core
|
Support language
|
Brazilian Portuguese, English, Spanish, Chinese, Turkish, Arabic, Korean, Italian, Russian |
Printing height
|
0.079 - 0.5 inches |
Printing distance
|
0.079 - 0.2 inches |
Print content
|
Text, times, batch number, serial number, logo, QR code, barcode, variable data
|
Print Resolution
|
600 DPI
|
Storage capacity
|
The system can store up to 1,000 preset pieces of information (external USB for free information transfer)
|
Character limit
|
up to 2,000 characters per process without length limits
|
Printing speed
|
3,100 inches/min
|
External interface
|
USB, photocell interface, RS232 (MX1
|
Printing materials
|
Plates, boxes, stones, pipes, cables, metals, plastic products, electronics, fiberboards, light steel keels, aluminum foils, and others.
|
About the product

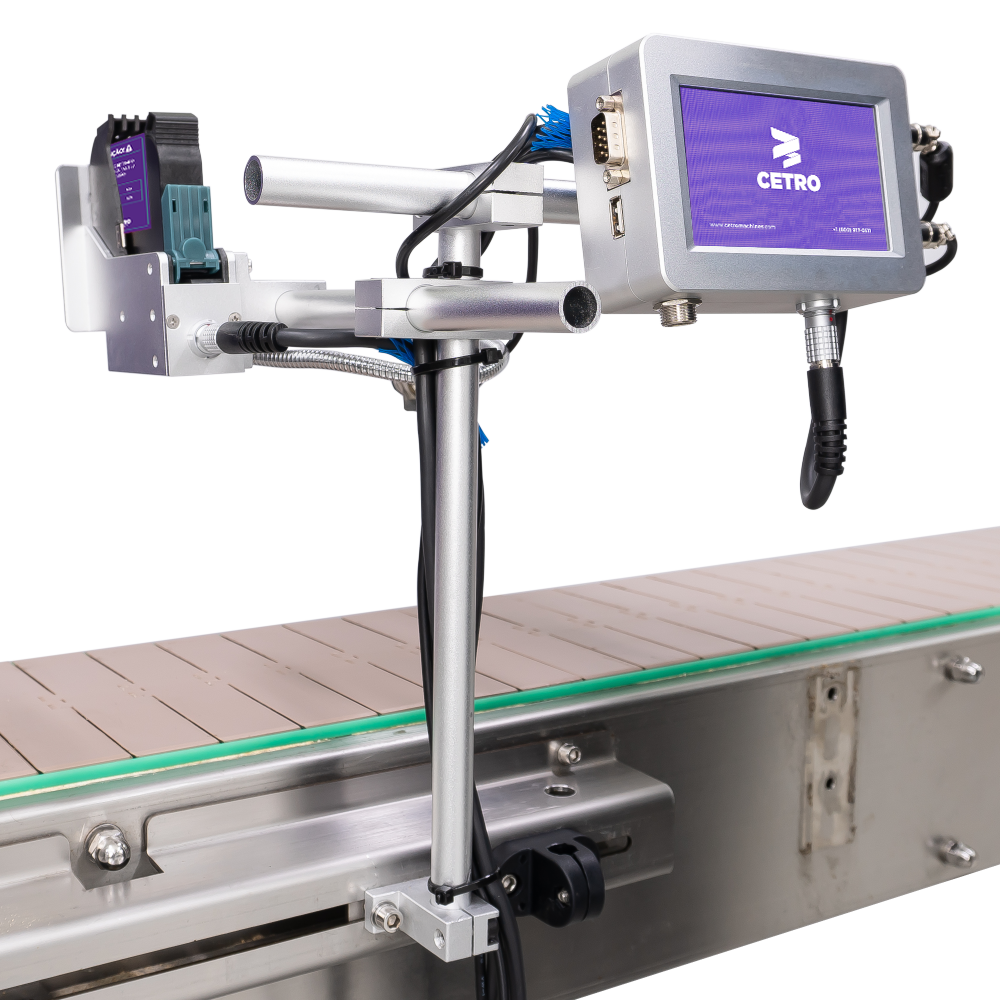

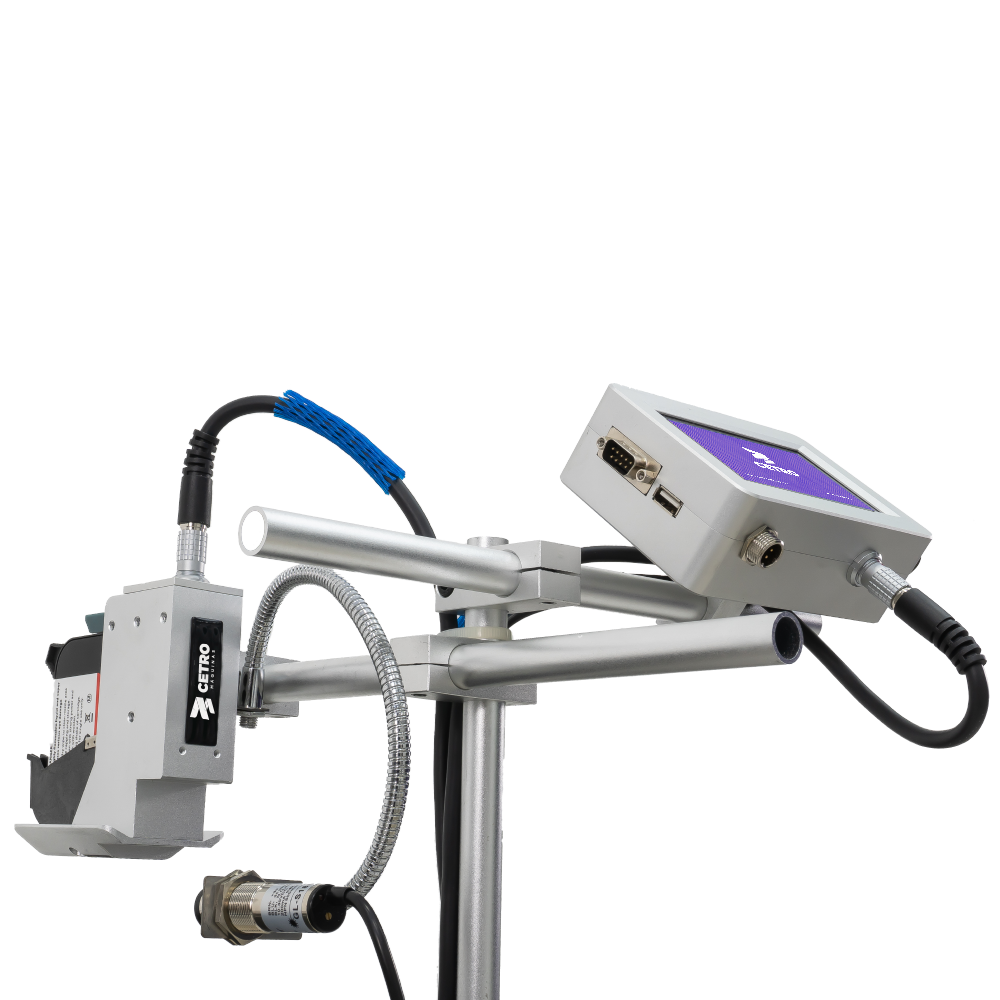

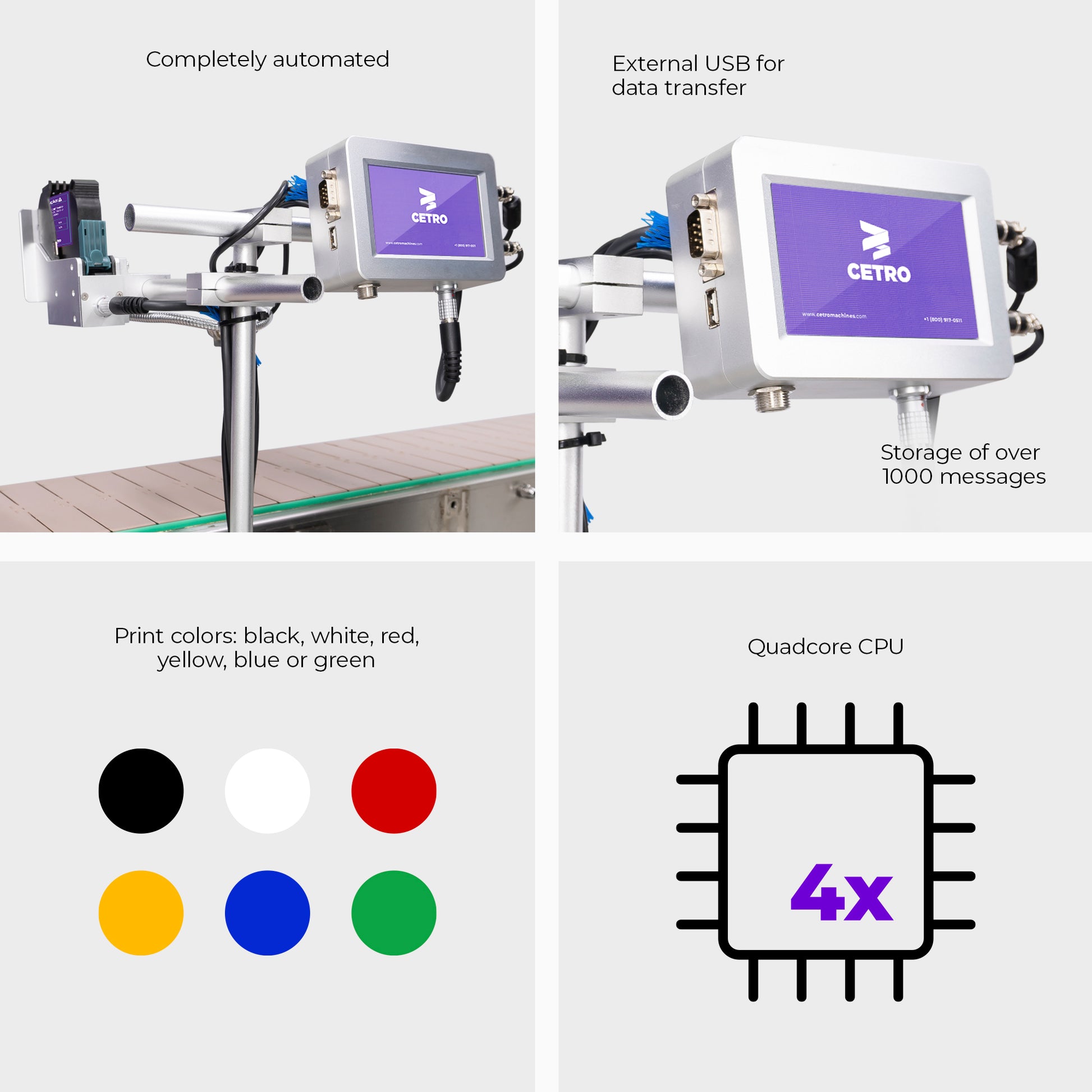

Cetro Inkjet Printer Machine CIPM L1
Cetro Inkjet Printer Machine CIPM L1 adapts perfectly to flat surfaces, such as boxes and caps, or surfaces with smooth cylindrical curves, in other words, the greater the curvature or smaller the radius of a bottle, the smaller needs to be the information to be printed.
PRODUCTION LINE
The machine can be installed at the end of the production processes in several types of equipment, such as Automatic Filling Machines, Packing Machines, Automatic Dosing Systems, and many other solutions from Cetro. In this way, the final packaging process of the products becomes even more automatic and productive, and maintains the capacity for a continuous flow of high productivity.
Cetro Inkjet Printer Machine CIPM L1 is highly recommended for demands that already have high productivity or for productions that are constantly growing, thus the equipment is used with other machines or in a conveyor that can be purchased together.
CLEAR PRINT
With 600 DPI high-resolution printing, the information is extremely clear, and you can use the following colors: black, white, red, yellow, blue, and green.
APPLICATION
Cetro Inkjet Printer Machine CIPM L1 prints the most diverse information about the product on the most different surfaces, from cardboard boxes to metals, glass, and plastics. That is because, on this model, you can use water-based ink, ideal for paper and boxes, or solvent-based ink, ideal for plastics and glass.
This equipment has a high productivity of 3,100 inches per minute, so it is ideal for companies that have a large demand and need to print on a large scale, and for those who want to start implementing a production line.
SIMPLE OPERATION AND MAINTENANCE-FREE
The great advantage of CIPM L1 is that it is user-friendly, in other words, you can use it without the need for a specialist in your production line. In addition, you can access specialized remote support for any need, and all the equipment adjustments can be done in seconds, such as changing the printhead or entering the information for printing.
STORAGE CAPACITY
Cetro Inkjet Printer Machine CIPM L1 prints up to 2,000 characters per process, and you can enter a multitude of content on this model, such as manufacturing and expiration date, text, time, batch number, serial number, logo, QR code, barcode, and variable data.

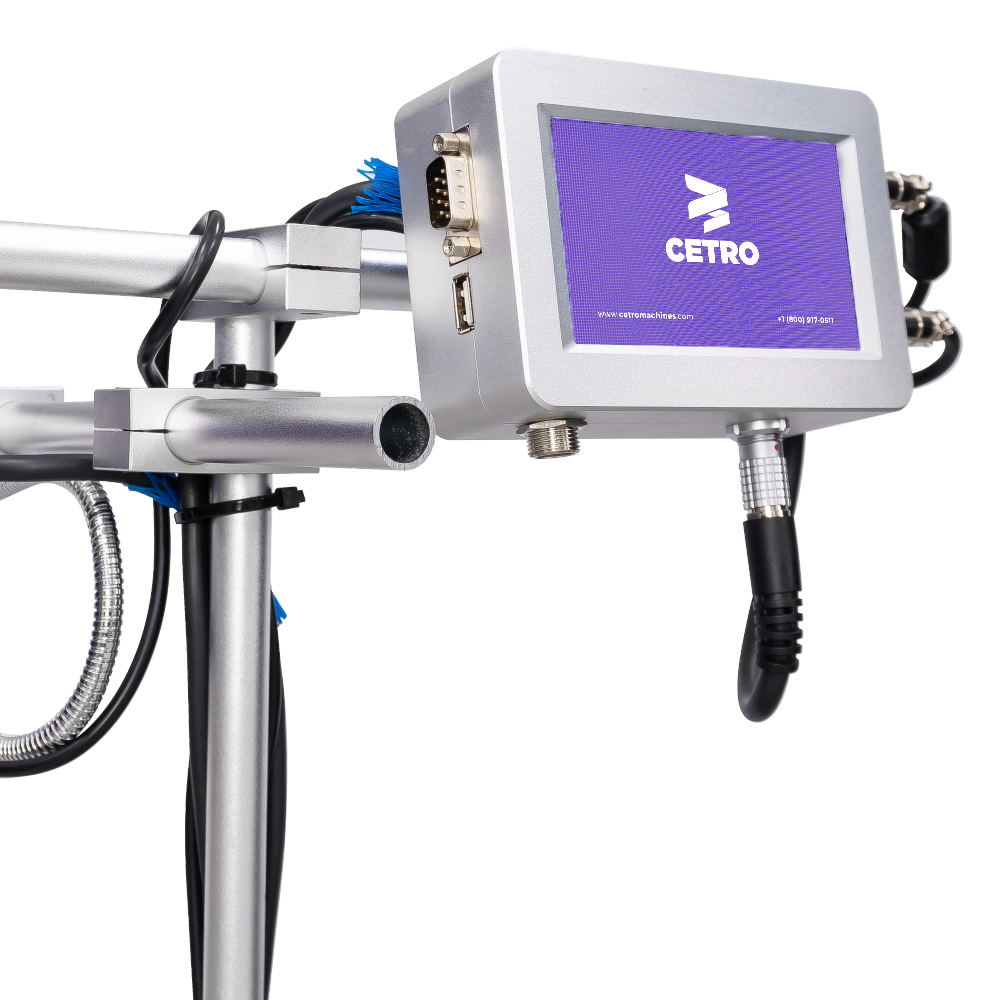

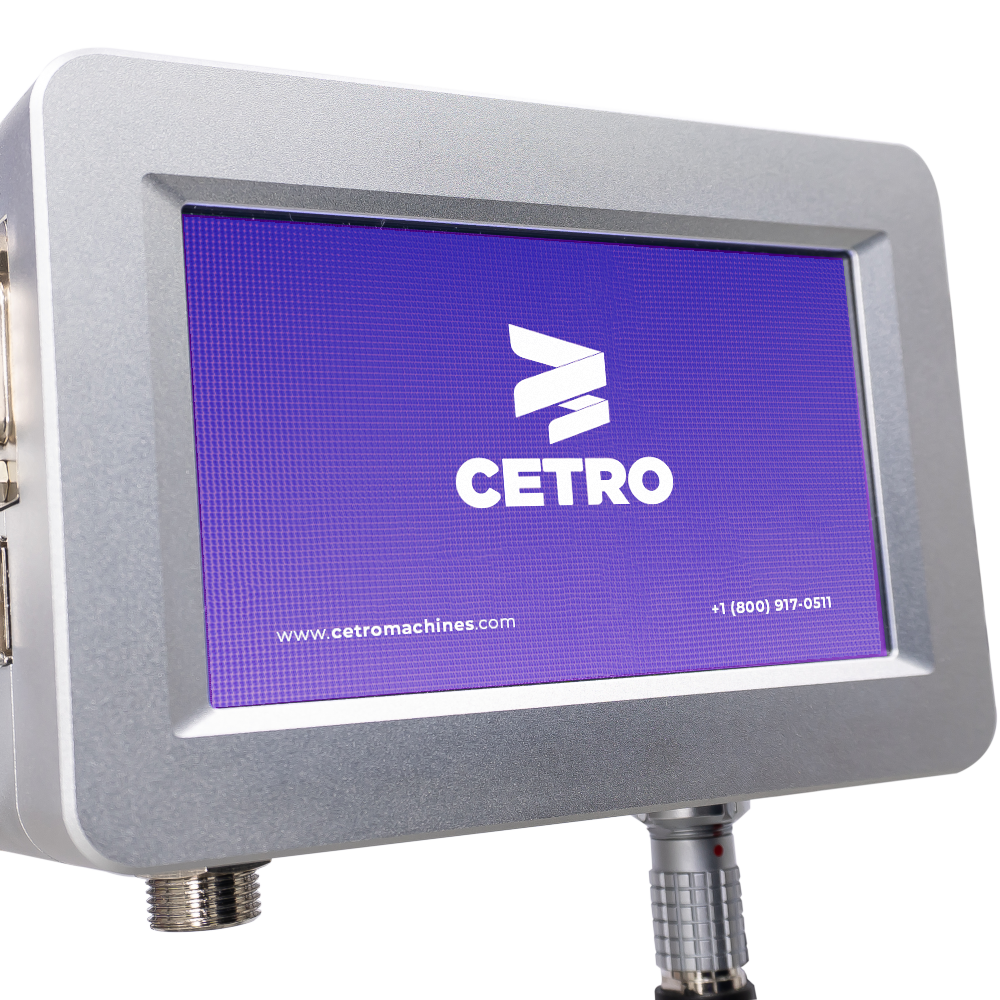

HIGH TECH SOFTWARE
Highly technological, Cetro Inkjet Printer Machine CIPM L1 has the newest Linux operating system, and robust hardware with a Quadcore processor and the capacity to store up to 1,000 preset information, making it much faster and more agile than other versions. In addition, you can program in the language you speak.
